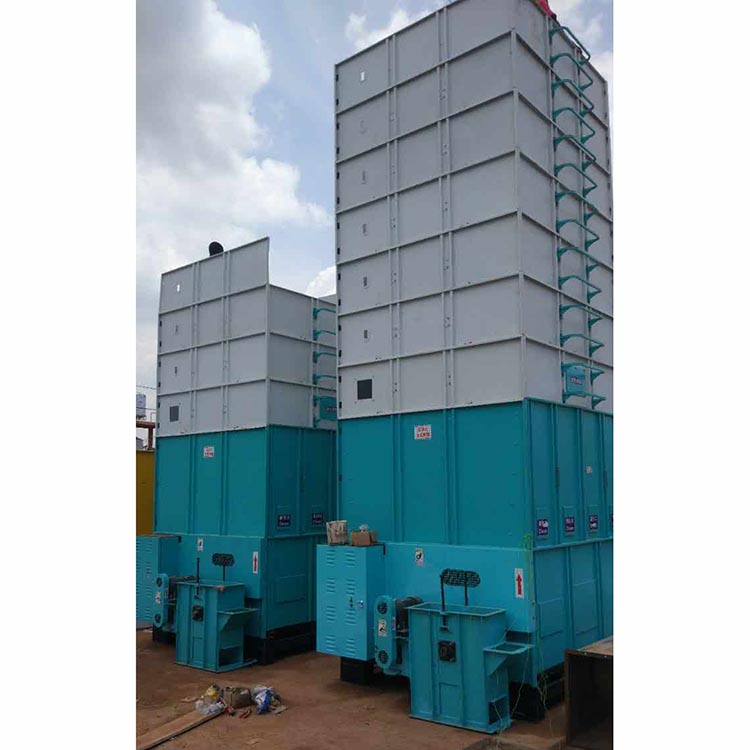

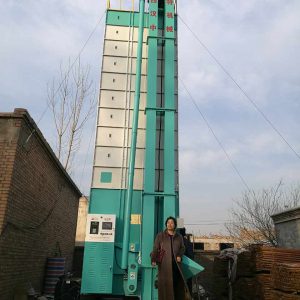

Brief Description

The vertical dryer has the advantages of high automation, simple operation, long continuous working time, high efficiency, low drying cost, and can realize unmanned operation. The core components include the automatic line moisture tester imported from Japan and the high-pressure spray burner imported from Italy. The technology is advanced, reliable, durable, adaptable and economical.

Hxg-3, 5hxg-5, 5hxg-10, 5hxg-12, 5hxg-15 and 5hxg-30 grain dryers are completely controlled by computer. Each set has two sets of drying procedures, one for grain, the other for seeds, which can be directly used for drying various commercial grain and grain seeds such as rice, wheat, rape, cottonseed, corn, soybean, sorghum, buckwheat, etc. At the same time, it can also ensure the seed quality and seed germination rate, and improve the commercial value of the material.
Serial numberItem UnitTechnical parameter
1Model /5HXG-100,120,150
2Type /Batch circulation grain dryer
3Handling capacity
(Moisture content of 22-24% of the maximum processing capacity)
tRice 10,12,15
4Dimension
(length×width×heighth)
mm4100*2400*7500
4100*2400*8500
4100*2400*9500
5Machine qualitykg2500,2800,3300
6Combustion engine/Gun type spray
7Lighting mode of combustion engine/Automatic lighting
8Fuel /0#(diesel)
9Combustion consumptionkg/h7.0-13.6
10Exhaust fan type/Centrifugal
11The air volume of exhaust fanm³/h10800
12Automatic control and safety equipment/Automatic moisture meter,
temperature control,
air pressure switch,
motor overload
protection automatic shutdown
13Matched powerkwGrain discharge motor  0.015
Fan motor  4
Dusting motor   0.09
On the auger motor   1.5
Under the auger motor  0.75
Circulation motor   0.1
14Voltage v380
15Drying capacityt%/hRice 8-10
 Wheat 7-10
16nonuniformity of drying%≤1.0
17Breakage rate appreciation%≤0.5
18Crack rate%≤3.0



Key Features

We can meet any special requirements, such as adding insulation. Use special heat sources (biomass, rice husk, diesel, coal, electric, steam, etc.), special designs, Special accessories, etc.
We can make your own custom equipment for you.

Customer Visit

FAQS

We have been an internationally renowned food processing equipment manufacturer for more than 30 years with a professional technical research and development team.

We have been focusing on the production of grain processing machinery and equipment for more than 30 years, gathered a large number of industry senior experts and engineers team, invented dozens of technical patents, product quality, and technology leading international, and have a perfect after-sales service team.

Please let us know the machine capacity you need, like 10t/d, 20t/d, 30t/d, 50t/d, etc; And the fineness of finished flour you want to get after milling; Other information like workshop size, local voltage, etc. We will make a quotation for you based on your requirements.

Certainly, we will send you the Operating video & instructions to you together with the machines, to help you use the machines better.

Before delivery, we will test and adjust the machine’s working condition for you, then you can use it directly when you get it.

T/T would be better with a quick transfer and a few bank fees. L/C could also be accepted, but the procedure is complex and the fee is high. You can also use Western Union and Paypal.

The answer is No, because the maize and wheat’s Physical Characteristics are different, like the shape, and the hardness, all are different, so they need different production technology. If you also need the maize milling machine, we can also offer you.

YES! One maize flour milling line can produce different sizes of maize flour and maize grits at the same time.

Semolina(very high gluten)–Pasta flour (gluten >13%)—Bread
Plain flour (gluten 9%-12%)–Noodle, Steamed bread Soft flour (gluten<8%)—Cake, Biscuit

Your don’t need to worry about anything, Our professional Chinese engineer will go to your country to help you install the machinery and train workers.
*Training how to install the machine, training how to use the machine, maintenance.
* Engineers available to service machinery overseas. Providing professional support for the consultation of engineering technology and technical problem.
