Product Information
This roller flour mill uses wheat as raw materials and also can process corn, wheat, soybean, sorghum ect. The equipment is compatible with standard African power supply (220V or 380V).
Key features:
- Two types: four and eight-rollers
- the highest degree of automation
- Stainless steel pipes, Cast iron base bottom parts
Brief Description
This roller flour mill adopts a high square plansifter, manual or pneumatic mill and purifier, and other high-quality flour milling equipment with advanced milling technology.
This wheat milling machine can be used to produce 1st and 2nd-grade flour as well as special flour. designed with steel on the upper and cast-iron base parts.
This equipment affordable wheat flour mill solutions for African farmers.
- Turkey’s advanced technology
- the highest degree of automation
- Stainless steel pipes
Technology

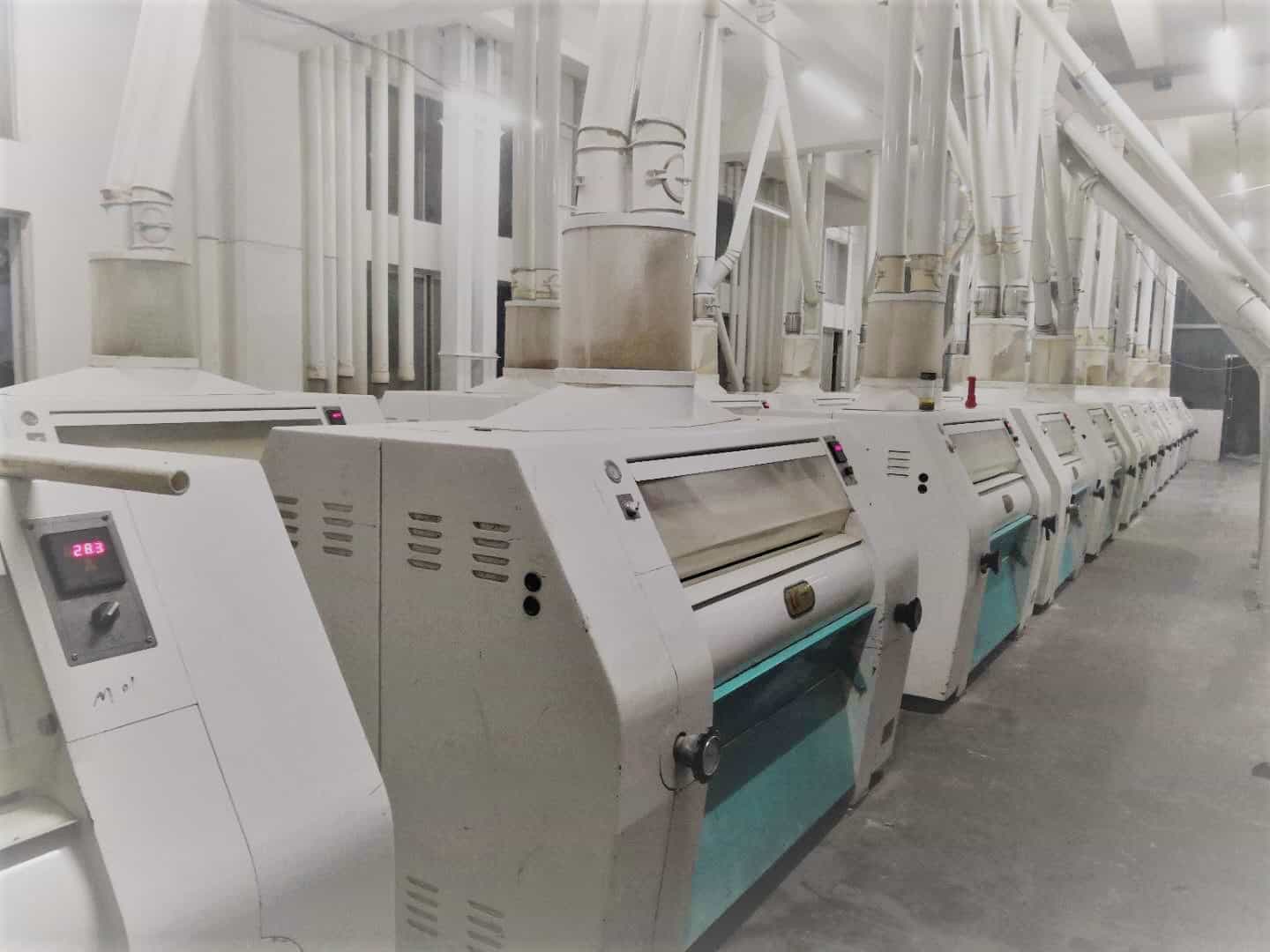

The wheat roller flour mill machine is an intelligent surface grinding machine with the highest degree of automation.
- A sturdy cast base ensures the stable and efficient operation of the mill;
- High standards of safety and sanitation, food-grade stainless steel for the parts contact with materials;
- Integral assembly and disassembly of the grinding roller set ensures quick roll change, reducing downtime;
- Grinding roller speed monitoring monitors the operation of the tooth wedge belt with a speed monitoring sensor;
- The wheat milling machine can be fully opened and exposed to key parts, which can be easily maintained and cleaned.
| Type | Product | Power(kW) | Workshop Size(L*W*H)m |
| 20T | Special purpose flour Grade 2 Standard flour | 45 | 25*8*5.5 |
| 40T | 65 | 25*8*7 | |
| 50T | 85 | 30*8*7.5 | |
| 80T | Special purpose flour Grade 1 Grade 2 Standard flour | 180 | 38*10*12.5 |
| 100T | 340 | 40*10*12.5 | |
| 120T | 420 | 43*10*12.5 | |
| 140T | 530 | 47*10*12.5 | |
| 150T | 540 | 49*10*12.5 | |
| 200T | 722 | 50*12*12.5 |
Process Overview

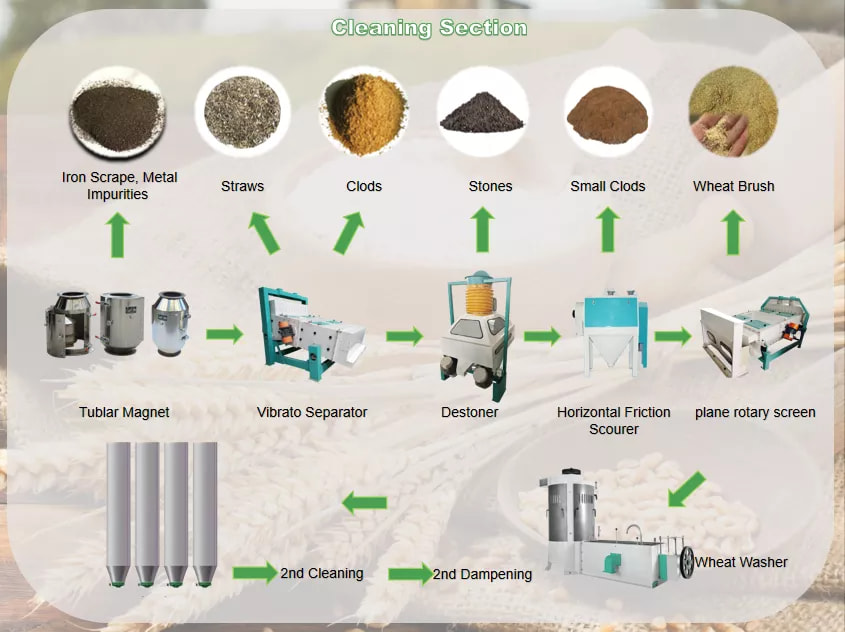

Cleaning Section
This series of wheat milling machine cleaning part use 6 times cleaning machines. In the cleaning section, there are several aspiration systems that can reduce the dust spray-out from the machine and keep a good working environment.
This is a complicated thorough flow sheet that can remove most of the coarse offal, middle size offal, and fine offal in the grain. The cleaning section is not only suitable for grain imported with lower moisture but also suitable for dirty grain from local customers.

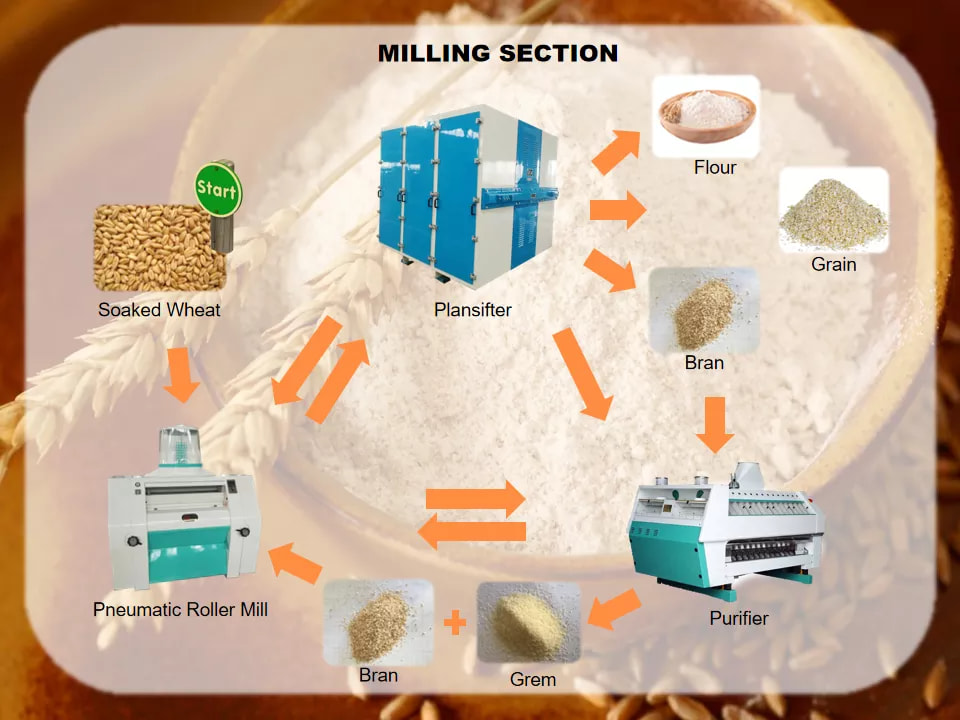

Milling And Section
In the milling and sieve section, there are four types of systems to mill the wheat to flour. They are 5-Break system, 7-Reduction system, 2-Scratch system, and 2-Tail system. Purifiers are specially designed to get more pure semolina sent to the Reduction which improves the flour quality by a large margin. The rollers for Reduction, Semolina, and Tail systems are smooth rollers that are well blasted.
The whole design will insure less bran is mixed into the bran and the flour yield is maximized. Because of the well-designed pneumatic lifting system, the whole mill material is transferred by a High-pressure fan. The milling room will be clean and sanitary for aspiration adoption.

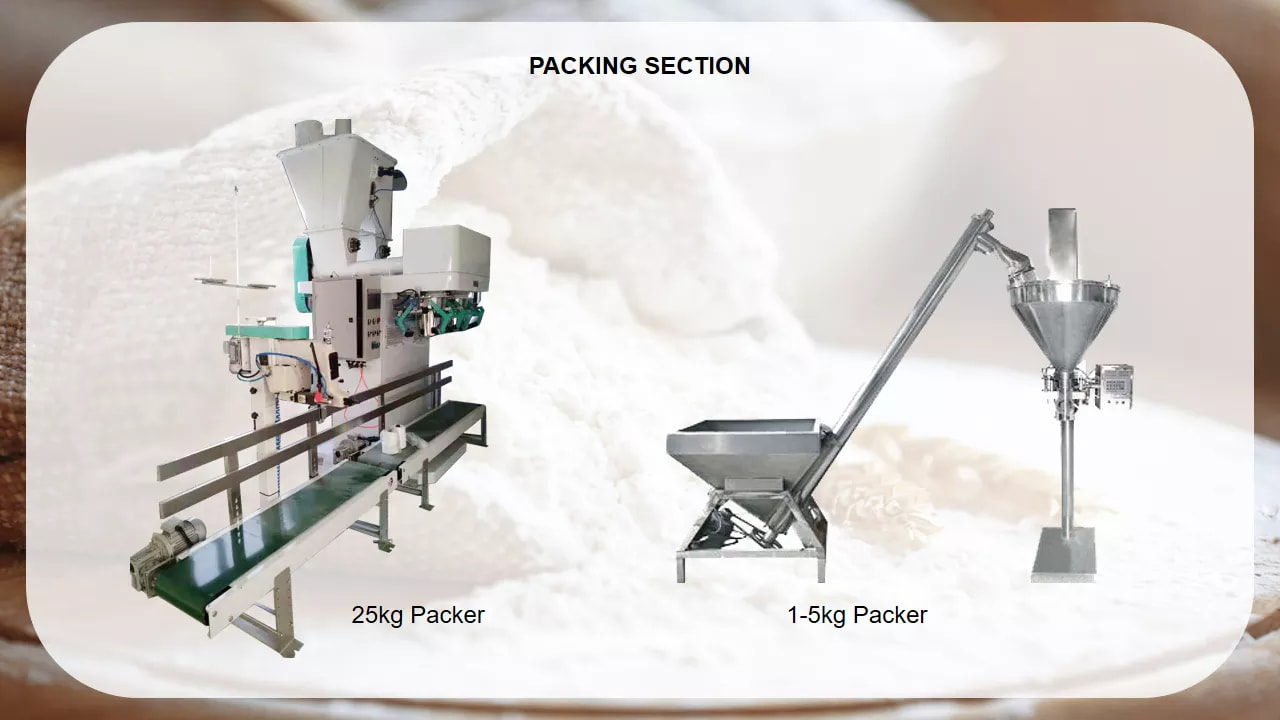

Packing Part
All packing machines are automatic. The packing machine has advantages of high measuring accuracy, fastpacking speed, reliable and stable working. The packing machine has the function of fault self-diagnosis. Its sewing machine has automatic sewing and cutting function.
The packing machine is with sealed type bag-clamping mechanism, which can prevent material from leaking out.There are many types of specification like 1-5kg,2.5-10kg,20-25kg,30-50kg.The clients can choose different packing specifications according to requirements.

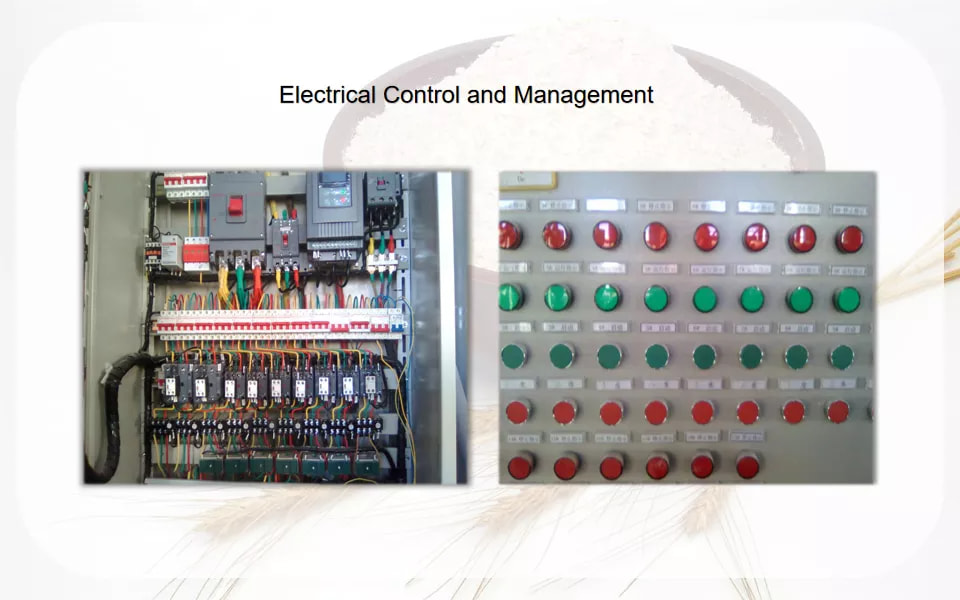

Electrical Control, And Management
In this part, we will supply an electrical control cabinet, signal cable, cable trays and cable ladders, and other electrical installation parts.
With a PLC control system, all the machinery will be controlled by Programmed Logical Controller. This will ensure the stable operation of machinery.

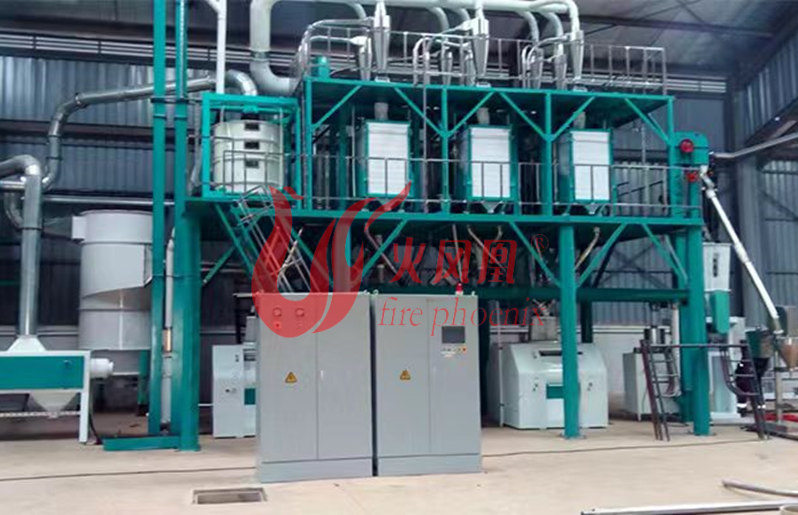

50-300 ton/day Wheat Flour Milling Plant Cases

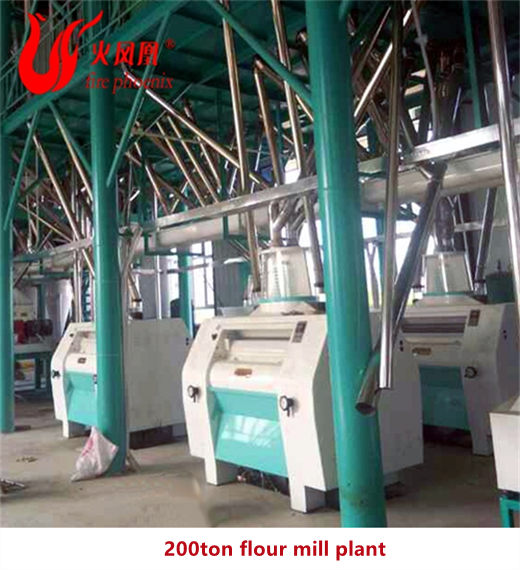

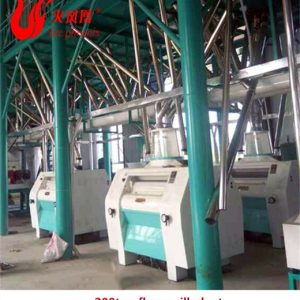

200TPD wheat flour milling plant
300tpd wheat mill production line
FAQs
Our equipment is specially designed to work under local power grid and climate conditions. It’s CE certified, reliable, and built for efficient large-scale processing in Africa.
Yes, we offer on-site support and maintenance for clients in Nigeria, Zimbabwe, Tanzania, Uganda, and other East African countries. Our team can assist with installation, training, and regular service.
Absolutely. We offer full customization based on your required output, local power specifications, and production environment. Your satisfaction is our goal.
Online consultation on our website or send an email to Lisaliu@hzburt.com—we have a dedicated team for East African clients.
Yes, our plants are engineered to work with local power systems and can handle voltage fluctuations. This ensures stable performance in African industrial zones.
